Description

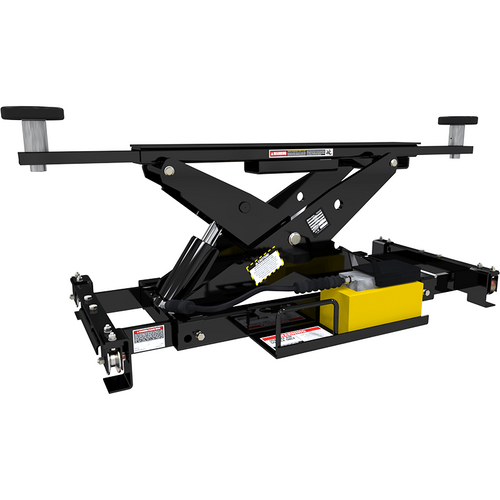

9,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels / BendPak's 9,000-lb. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.
RJ9W
- 9,000-lb. lifting capacity
- Easy-Roll Wheels
- Rubber contact pads
- Stackable adapters
- High-pressure hydraulic power unit
- Optional air-line kit
Specifications
Specifications
Lifting Capacity
9,000 lbs. (4,082 kg)
Suitable Lift Model(s)
HDS-18E, HDS-27 Series
Min. Drive-Over Height*
Pad Only:
5.25" (133 mm)
Pad + 2.75" Adapter:
8" (203 mm)
Pad + 5.5" Adapter:
10.75" (273 mm)
Max. Lifting Height*
Pad Only:
16.25" (413 mm)
Pad + 2.75" Adapter:
19" (483 mm)
Pad + 5.5" Adapter:
21.75" (552 mm)
Reach
Support Base Width:
45" (1,143 mm) - 50" (1,270 mm)
Max. Arm Reach:
56" (1,422 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
5,020 PSI
Power Requirement:
None
Shipping Weight:
478 lbs. (217 kg)
Shipping Dimensions:
47" x 25" x 15" (1,206 mm x 635 mm x 381 mm)
