Description

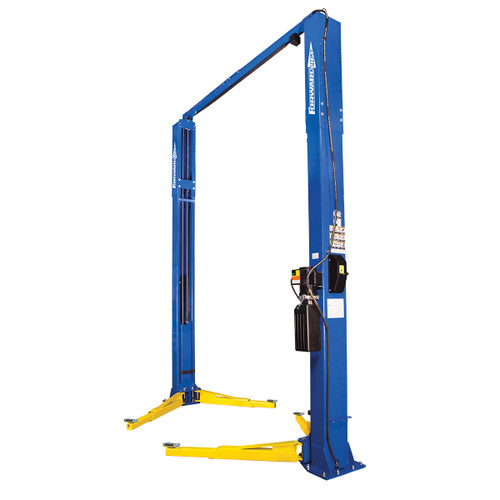

Forward's F12 two-post lift is gold certified with a 12,000 pound capacity for raising most passenger cars, trucks, and vans. With two heavy-duty push hydraulic cylinders designed to increase lift performance and minimize down-time. Cylinders are located in each column concealed within the carriage itself. Durable powder coat finish provides exceptional protection from the wears a shop will see over the years. Forward's spring operated arm restraints are just one feature that keep these heavy duty lift arms constantly performing at their peak performance.
Features:
- 154" Overall Height
- Hydraulic cylinders in each column
- Full Stroke
- Cylinder rod concealed inside carriage
- 72-1/2" Rise | 77-1/2" Rise (With 5" adapter extensions)
- 2 Stage Arm Design
- Overhead cable equalization
- Single Point lock release
- Large rubber-padded swivel adapter with extra height extensions (3.5" and 5") are standard
- Spring operated arm restraints, disengage at floor level
- 2-stage front and rear arms
- Durable powder coat finish
Warranty Information
| Specifications | F12 |
| Capacity | 12,000 lbs. |
| Maximum Rise | 77-1/2â?³ With 5â?³ adapter extension |
| Adjustable Overall Height Options | I12N300 13â?? 10â?³ Standard I12N301 14â?? 10â?? Max. Height I12N302 12â?? 10â?? I12N303 11â?? 11â?? |
| Overall Width | 11â?? 8â?³ or optional 12â?? 2â?³ |
| Drive Through Clearance | 102-3/4â?³ or optional 108-3/4â?³ |
| Overhead Switch Height Options | I12N300 160 1/8â?³ Standard I12N301 172 1/8â?³ Extended I12N302 148 1/8â?³ I12N303 137 1/8â?³ |
| Front Arm Reach (Min./Max.) | 27 3/4â?? / 59â?? |
| Rear Arm Reach (Min./Max.) | 27 3/4â?? / 59â?? |
| Min./Max. Adapter Height | 4-3/4â?³ w/ no adapter extension 9-3/4â?³ w/ 5â?³ adapter extension |
| Width Inside Columns | 114 7/8â?? Standard 120 7/8â?³ Optional |
| Voltage/Amps | 208-230v, 17 amps |
| Motor/Phase** | 2HP / 1 PH |
| Ceiling Height Required | 168â?³ (4267mm) |
Specifications subject to change without notice or liability. *Lifts available in blue (BL) and red (RD) | |
Specifications
- Capacity:
- 12000
- Design:
- Two-Post
- Configuration:
- Symmetric
- Overall Height:
- 154''
- Overall Width:
- 140''
- Inside Columns:
- 115''
- Colors:
- Red
- Colors:
- Blue
- Country of Origin:
- Asia
