Description

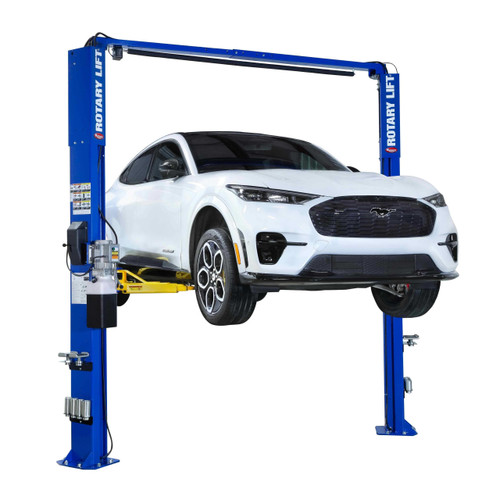

Two-Post Asymmetric Lift with All-Vehicle Lift Arms
Capacity: 10,000 lbs.
Introducing the ONE LIFT to service them all! The next evolution in vehicle lift technology has arrived. Accommodate all vehicle types under 10,000 lbs. with the industry’s original and best-selling asymmetrical lift, now featuring Rotary’s NEW All-Vehicle (AV) Lift Arms.
These revolutionary, patent-pending arms provide technicians the ability to lift and service practically all roadgoing vehicles on ONE LIFT (within the lift’s rated capacity), including:
- Battery Electric
- Exotic Low Profile
- Truck Frame
- Unibody Cars & SUVs
*Comes standard with adjustable round, truck and stackable adapter extensions
Warranty Information
| Max rise (standard) | 81 1/2" |
| Max rise (Shocwave) | 84 1/2" |
| Overall Height | 11' 11 1/2" (with Shockwave Power: 12' 5 1/2") |
| Overall Width | 11' 5 1/2" |
| Drive-Thru Clearance | 95 1/4" |
| Inside Columns | 107 1/4" |
| Front Arm Min/Max | 18 1/2" / 41" |
| Rear Arm Min/Max | 27 5/8" / 58 1/4" |
| Min Adapter Height | 3 3/8" |
| Speed of Rise | Standard Power: 45 secondswith Shockwave Power: 25 seconds |
| Speed of Decent | Standard Power: 40 secondswith Shockwave Power: 19 seconds |
| Ceiling height required | 12' / 12' 6" with Shockwave Power |
| Min Bay Size | 12'x24' |
Specifications
- Capacity:
- 10000
- Design:
- Two-Post
- Configuration:
- Asymmetric
- Overall Height:
- 144''
- Overall Width:
- 138''
- Inside Columns:
- 107''
- Colors:
- Red
- Colors:
- Blue
- Colors:
- Black
- Country of Origin:
- USA
