Description

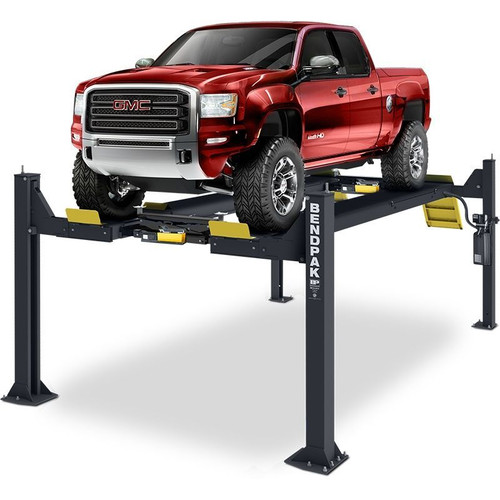

14,000-lb. Capacity / Four-Post Lift / Standard Length / BendPak's HDS-14 four-post lift is a whole new breed of rugged. It features superior components that work better, are built to last and increase operator safety. If your service bay needs to get under heavy-duty, oversized vehicles on a daily basis, this lift is what you need.Specifications
Capacity
Lifting Capacity*
14,000 lbs. (6,350 kg)
*Max Capacity / Front Axle
7,000 lbs. (3,175 kg)
*Max Capacity / Rear Axle
7,000 lbs. (3,175 kg)
Rise
A - Min. Runway Height:
7.5" (191 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
77.5" (1,969 mm)
Time to Full Rise:
60 seconds
Outside Dimensions
D - Overall Width:
130" (3,302 mm)
E - Outside Length:
213" (5,410 mm)
F - Overall Length:
242" (6,147 mm)
G - Height of Columns:
92" (2,337 mm)
Inside Dimensions
H - Width Between Columns:
120" (3,048 mm)
I - Drive-Thru Clearance:
98" (2,489 mm)
Runways
J - Runway Width:
20" (508 mm)
K - Length of Runways:
197.5" (5,017 mm)
L - Width Between Runways:
34.5" (876 mm) or 41.5" (1,054 mm)
M - Runway Centerline:
57.5" (1,461 mm) or 64.5" (1,638 mm)
N - Outside Edge of Runways:
77.5" (1,969 mm) or 84.5" (2,146 mm)
Minimum Wheelbase
Rated Capacity:
140" (3,556 mm)
75% Capacity:
120" (3,048 mm)
50% Capacity:
100" (2,540 mm)
25% Capacity:
80" (2,032 mm)
Locking
Locking Positions:
15
Lock Spacing:
Every 4" (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
2,606 lbs. (1182 kg)
Dimensions:
209" x 22" x 29" (5,309 mm x 558 mm x 737 mm)
