Description

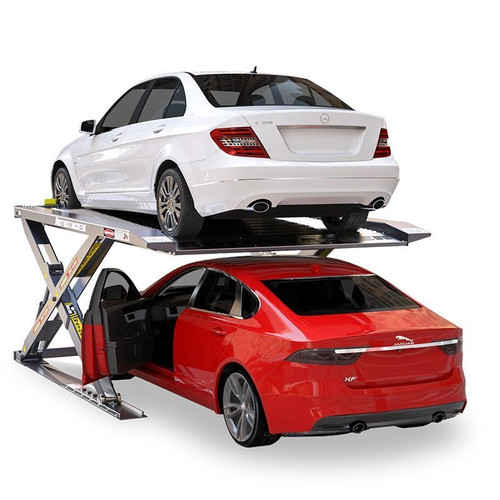

6,000-lb. Capacity / Platform Parking Lift / Car Stacker / Autostacker (A6S) is the fully collapsible parking lift that doubles the vehicle capacity of a single parking space. Ideal for home garages and commercial applications alike, this unique lift offers a minimal footprint that maximizes expansion. Easy and safe to use both indoors and outdoors.
A6S
- 6,000‐lb. lifting capacity
- Key‐switch disconnect fully disables operation for enhanced security
- Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
- Accommodates cars, light trucks and SUVs
- Rugged, welded‐steel construction is strong and durable
- 100% hot‐dipped, galvanized steel platform
- Attractive slate gray, baked‐on powder coat finish provides added toughness
- Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
- Full‐width, gradual sloping platform reduces entry ramp height
- Automatic safety locks engage at five different parking heights
- Simple push‐button controls
- Dual, direct‐drive hydraulic lifting cylinders
- Dependable hydraulic circuit that provides precise, equalized lifting
- Variable height parking accommodates a wide range of vehicle and ceiling heights
- Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
- Full‐width, straight‐through axles increase overall stability and tracking through the vertical travel range
- Full‐width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
- Extra‐wide, heavy‐duty steel scissor arms with cross member bracing enhance stability
- Unique clevis‐design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
- Patented asymmetric scissor arms provide greater underside door clearance
- Patented Door‐sentry™ car door protectors are made from energy‐absorbing rubber to protect against accidental scratches or door dings
- Space‐saving design is perfect for commercial or residential applications
- Minimal footprint fits a typical parking space
- Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
- UL Listed electrical components meet National Electrical Code (NEC) requirements
Specifications
Style
Style:
Multi-Platform Parking Lift
Capacity
Lifting Capacity:
6,000 lbs. (2,722 kg)
Overall width:
103” (2,620 mm)
Overall length:
144” (3,652 mm)
Platform length:
124” (3,150 mm)
Platform width:
83.75” (2,128 mm)
Platform height (forward):
13” (330 mm)
Ramp height (entry):
2” (51 mm)
Maximum underclearance:
80” (2,032 mm)
Under clearance on 1st lock (lowest):
52.5" (1,331 mm)
Under clearance on 2nd lock:
60.75" (1,543 mm)
Under clearance on 3rd lock:
68.5" (1,736 mm)
Under clearance on 4th lock:
75" (1,909 mm)
Under clearance on 5th lock (highest):
81.25" (2,064 mm)
Motor:
208-240V, 50/60 Hz / 1 Ph
Noise:
52 dB
Shipping Weight:
2,558 lbs. (1,160 kg)
Shipping Dimensions:
143'' x 28'' x 22'' (3632 mm x 711 mm x 558.8 mm)
