Description

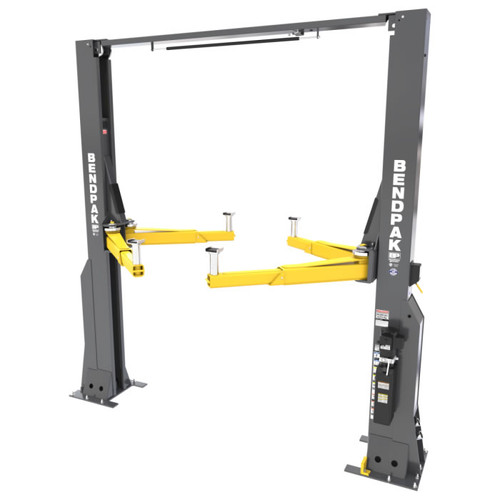

Two Post Car Lift 16,000-lbs. Capacity / Adaptable Clearfloor / High-Rise / 168" O.A. Height
The 16AP two-post lift delivers exceptional direct-drive lifting performance. Equipped with cutting-edge technology, top-of-the-line materials, and a design that’s ahead of its time, the 16AP is what you’ll want when you’re working on vehicles weighing up to 16,000 lbs.
Specifications
Max. Lifting capacity
16,000 lbs. / 7,257 kg
A – Max. Rise
75.75 in. / 1,922 mm
B – Lifting Height w/Pad down1
78.50 in. / 1,992.3 mm
C – Max. Lifting Height w/ Pad up1
82.5 in. / 2,095 mm
D – Min. Height w/ Pad
7.75 in. / 196.85 mm
E – Overall Height
169 in. (4,294 mm)
F – Overall Width
156 in. / 3,959 mm
G – Width, Outside Posts
143 in. / 3,238 mm
H – Width, Inside Posts
120 in. / 3,047 mm
I – Width, Drive-Thru
103 in. / 2,616 mm
J – Floor to Top Switch
163 in. (4,128 mm)
K – Front Arm Reach
36.5 in. to 65 in. (927 mm to 1,651 mm)
L – Rear Arm Reach
36.5 in. to 65 in. (927 mm to 1,651 mm)
Max. load per Lift Arm
4,000 lbs. / 1,814 kg
Pad Adapters Total Height
7.50 in. / 188 mm
Time to Full Rise
≈ 45 seconds
Motor2
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
