Description
12,000-lb. Capacity / Clearfloor / Screw Pads / High-Rise / 193" O.A. Height

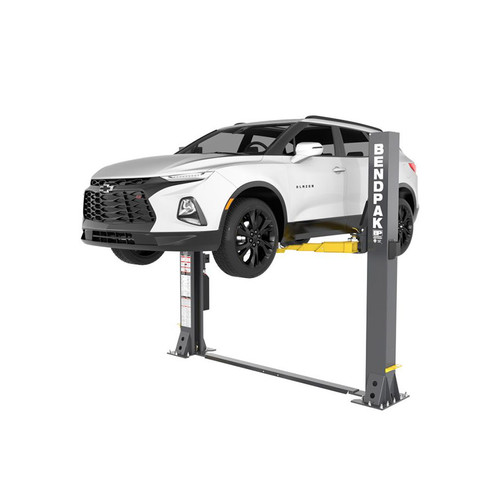

The BendPak 12APX- 192 is a robust lift designed to ease mechanics' workloads. With a towering height of 193 inches and a 12000- lb lifting capacity, it offers ample space and power. Part of our innovative AP Series, it's tailored for modern electric vehicles, featuring advanced Bi- Metric arms for efficient lifting. With safety features like the Automatic Swing Arm Restraint System and innovative safety lock system, it ensures secure operation. Plus, its versatile design and Low- Pro arms make it ideal for a range of vehicles, providing precise and safe lifting solutions.
- 12K LBS. Lifting Capacity
- Bi-Metric™ Lifting
- Low-Pro™ Triple-Telescoping Arms
- Performance Guaranteed*
- Adaptable Design: Symmetric or Asymmetric
- Automatic Swing Arm Restraint System (ASARS)
- Durable Powder Coat Finish
- Expandable Top Beam
- Double-Telescoping Screw Pads
- Padded Overhead Safety Shutoff Bar
- Exclusive Bi-Metric™ Arm Design
- Single-Point Safety Release
- Drop-End Arms
- Dual Hydraulic Direct-Drive Cylinders
- Electric/Hydraulic HVLP Power System
- Self-Lubricating Dura-Glide UHMW Polyethylene Bearing System
- Safety Locks in Each Column
- Heavy-Duty Aircraft-Quality Equalizer Cables
- Oversized Cable Sheave Diameter
- Four-Triple Telescoping Arms
Accessories Included:
- 2.5" Medium Adapters (Set of 4)
- 5" Tall Adapters (Set of 4)
- Adapter Holders (Set of 2)
- Drop-In Cradle Pads (Set of 4)
Optional Accessories:
- Quick-Fit Pinch-Weld Pucks (Set of 4)
- Quick-Fit Pinch-Weld Pads (Set of 4)
- Wide Frame Cradle Adapters (Set of 2)
- 2" Low Adapter (Set of 4)
- Steel Lift Pads (Set of 4)
- Replacement Urethane Pads (Set of 4)
- Screw Pads (Set of 4)
Specifications
Model 12APX-192
SKU
5175557
Max. Lifting capacity
12,000 lbs. / 5,443 kg
A – Max. Rise
75.75 in. / 1,922 mm
B – Lifting Height w/Pad down
78.50 in. / 1,992.3 mm
C – Max. Lifting Height w/ Pad up
82.5 in. / 2,095 mm
D – Min. Height w/ Pad
4 in. / 101.2 mm
E – Overall Height
193 in. / 4,904 mm
F – Overall Width
156 in. / 3,959 mm
G – Width, Outside Posts
143 in. / 3,238 mm
H – Width, Inside Posts
120 in. / 3,047 mm
I – Width, Drive-Thru
103 in. / 2,616 mm
J – Floor to Top Switch
186.50 in. / 4,738.5 mm
K – Front Arm Reach (min)
55.25 in. / 1,404.2 mm (max)
L – Rear Arm Reach
60 in. / 1,524.4 mm (max)
Max. load per Lift Arm
3,000 lbs. / 1,361 kg
Pad Adapters Total Height
7.50 in. / 188 mm
Time to Full Rise
≈ 45 seconds
Motor
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
