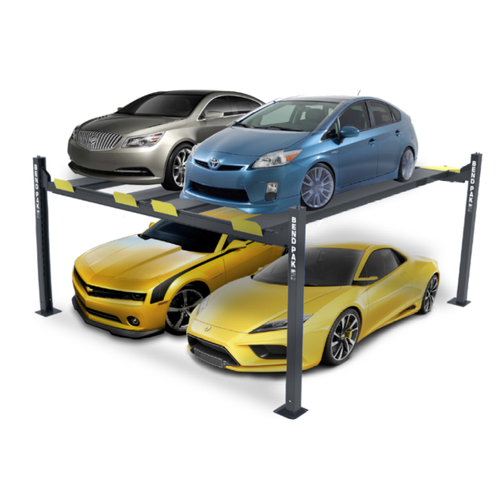

Bendpak HD-9SWX-E : 9,000 Lb. Capacity - Extra Wide - 82" Rise - 248” Overall Width

$14,495.00
SKU:
5175815
Capacity:
9000
Design:
Four-Post
Type:
Parking
Free Shipping
Adding to cart… The item has been added

Description

The BendPak HD-9SWX-E Extra-Wide 4-Post Car Lift is designed to deliver exceptional lifting versatility, convenience, and space efficiency for professional automotive workshops and vehicle storage applications. Featuring a 9,000 lb lifting capacity, 82-inch rise height, and 248-inch overall width, this lift provides generous working space for servicing and storing compatible cars, trucks, and SUVs.

Designed with extra-wide construction and runways that are 24 inches longer than the standard-length HD-SW, the BendPak HD-9SWX-E provides additional room for vehicle positioning and undercarriage access. Its spacious configuration allows technicians to service two raised vehicles on a single lift while also offering convenient multi-vehicle storage capabilities.

Built for automotive enthusiasts and professional service facilities, the HD-9SWX-E combines practical functionality with a space-saving design. Its high-rise configuration provides comfortable working clearance beneath raised vehicles, while its wide platform accommodates a variety of compatible vehicle sizes.

Ideal for automotive repair shops, dealerships, vehicle storage facilities, collectors, and professional garages, the BendPak HD-9SWX-E offers a versatile solution for maximizing available floor space and improving workshop productivity.

Key Features:

  • 9,000 lb Lifting Capacity: Provides dependable lifting performance for compatible cars, trucks, and SUVs within the lift's rated capacity.
  • Extra-Wide 4-Post Design: Offers additional space for vehicle positioning and convenient access.
  • 248-Inch Overall Width: Provides a spacious configuration for compatible vehicle arrangements.
  • 82-Inch Rise Height: Offers increased standing room and working clearance beneath raised vehicles.
  • Extended-Length Runways: Feature an additional 24 inches of runway length compared with the standard HD-SW model.
  • Dual-Vehicle Lifting Capability: Designed to accommodate two compatible vehicles on the lift simultaneously, subject to capacity and loading requirements.
  • Four-Vehicle Storage Potential: Allows storage of up to four compatible vehicles using upper and lower parking spaces.
  • Spacious Undercarriage Access: Provides convenient access for inspections, maintenance, and repair procedures.
  • High-Rise Configuration: Offers additional working height for improved technician comfort.
  • Versatile Vehicle Accommodation: Suitable for compatible passenger cars, SUVs, and light-duty trucks.
  • Efficient Garage Space Utilization: Helps maximize available parking and storage space.
  • Convenient Vehicle Positioning: Extended runways provide additional room for accommodating compatible vehicles.
  • Professional Service Applications: Supports inspections, maintenance, and servicing of raised vehicles.
  • Multi-Vehicle Storage Design: Provides flexi

Specifications

Capacity

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)

Rise

A - Min. Runway Height:
7" (178 mm)
B - Max. Rise:
82" (2,083 mm)
C - Max. Lifting Height:
89" (2,261 mm)
Time to Full Rise:
65 seconds

Outside Dimensions

D - Overall Width:
248" (6,299 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
242.5" (6,159 mm)
G - Height of Columns:
102" (2,591 mm)

Inside Dimensions

H - Width Between Columns:
192" (4,877 mm)
I - Drive-Thru Clearance:
178" (4,521 mm)

Runways

J - Runway Width:
19" (483 mm)
K - Length of Runways:
188" (4,775 mm)
L - Width Between Runways:
34.25" (870 mm) or 41" (1,041 mm)
M - Runway Centerline:
56.25" (1,429 mm) or 62.75" (1,594 mm)
N - Outside Edge of Runways:
75.25" (1,911 mm) or 81.75" (2,076 mm)

Minimum Wheelbase

Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)

Locking

Locking Positions:
17
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
3,038 lbs. (1378 kg)
Dimensions:
205'' x 22'' x 51'' (5,207 mm x 558 mm x 1,282 mm)
