Description

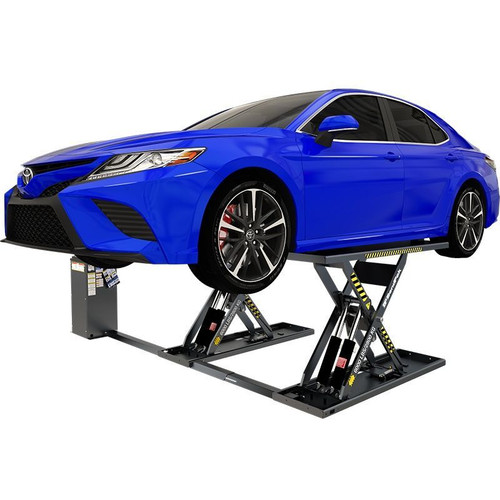

6,000-lb. Capacity / Mid-Rise Frame Lift / Portable / You haven't experienced state-of-the-art portable lifting convenience until you've used the BendPak MD-6XP mid-rise scissor lift. This 6,000-lb. capacity portable mid-rise lift comes loaded with adjustable arm assemblies, safety lock bars with multiple lock positions and free set of truck adapters.
- 6,000-lb. lifting capacity
- Perfect for servicing light-duty trucks and cars
- Portable motor cart serves as tow handle to easily move lift from bay to bay
- Adjustable arm assemblies
- Safety lock bar with multiple lock positions
- Fast and efficient operation
- Truck adapters included free of charge
Specifications
Lifting capacity:
6,000 lbs. (2,722 kg)
Lifting height (no pads)*:
47" (3.9 feet) (1,190 mm)
Overall width:
41.5" (3.6 feet) (1,054 mm)
Overall length:
76" (6.4 feet) (1,930 mm)
Frame length:
60" (5 feet) (1,524 mm)
Lowered height:
4.75" (121 mm)
Top locking position (no pads)**:
42" (3.5 feet) (1,067 mm)
Middle locking position (no pads)**:
33.25" (2.8 feet) (844 mm)
Bottom locking position (no pads)**:
22" (1.8 feet) (562 mm)
Raising/lowering time***:
45 seconds
Motor****:
115/220 VAC / 50-60 Hz / 1 Ph
* Distance is from ground to top of Platform; does not include height of Arms or Pads.
** For height comparison only; do not raise a Vehicle without Lift Pads.
*** Lowering is much slower with no Vehicle on the Lift.
**** Must specify at time of ordering.
