Description

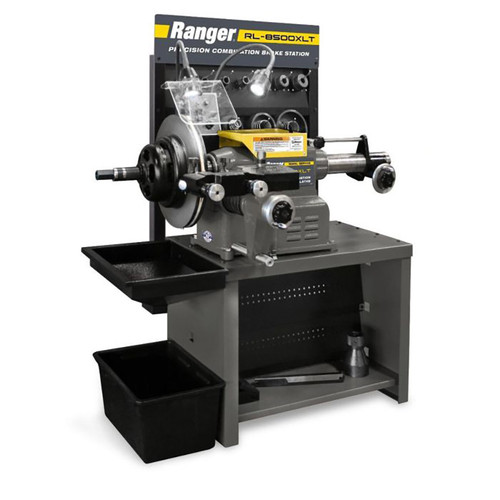

The BendPak Ranger RL-8500XLT is a super-duty combination disc-and-drum brake lathe designed for automotive and light-truck brake resurfacing. Its extended-capacity spindle can machine brake drums up to 10 inches deep, while the relocated rear spindle bushing provides additional support for heavy drums, rotors, and flywheels. The machine includes a heavy-duty steel bench, standard tooling, adapter-storage backboards, and chip-management components for a complete professional workstation.
- Extended capacity spindle can be used on brake drums 10” deep
- Rear bushing location provides extra support for the arbor
- Capable of truing even the heaviest drum rotors
- In contrast to mechanically-driven transmission and gear boxes, the RL-8500XLT uses precision electric DC servo motors designed to meet the demanding requirements of industrial motion control
- Quick-Change Adapter-Plus system with built-in springs eliminates the need for conventional bell clamps and cones
- Works on all cars or trucks, both foreign and domestic, with hubless drums, rotors (center hole sized 2-5/32” – 4”) and composite rotors (center hole sized 4” – 6.25”)
- The RL-8500XLT is equipped with features that help increase your service capability, like precision twin cutter tools and a quick drum-to-rotor changeover
- Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts
- Simple ergonomic controls are designed for minimal operator movement
- Legendary control makes unit easy to learn and master.
- The RL-8500XLT maintains accuracy year after year thanks to ruggedly constructed components, like a hardened, precision ground spindle that resists grooving and makes boots a thing of the past
- Massive tapered spindle bearings offer superior weight support during rotation
- Our exclusive "splash-lube" oil-feed system supplies a constant flow of oil to the bearings making sure they provide years of trouble-free service
- Serpentine belts provide a faster, quieter operation, reducing chatter and vibration
- An independent cross-feed motor eliminates the need for plastic or bronze shear gears which are expensive and time consuming to replace
- A convenient top storage tray means your popular adapters and tools are kept within short reach
- Separate motors on the drum and rotor feed help maximize the main motor's efficiency
- Our deluxe standard adapter package includes a Quick-Change hubless adapter system that makes mounting rotors and drums quick and easy
- A variety of adapters let you machine all standard and composite rotors for foreign and domestic cars and light trucks
- A 450-lb. cast iron body and a solid work bench reduces transient vibrations, ensuring a smooth uninterrupted surface finish with each pass
- Easily change arbor speeds in seconds: choose 150 or 200 rpm, depending on the job
- Positive rake cutter tip angle provides for a single-pass finish virtually every time, allowing you to complete your work faster than with inferior multi-pass lathes
- Optional truck adapter kit available
Specifications
Motor Drive Unit
115 – 230 VAC, 50 – 60 Hz, 1 Ph, 20 amp
Max Rotor Thickness
2.5” (64 mm)
Max Rotor Diameter
17” (432 mm)
Brake Drum Diameter
6” – 28” (152 mm – 711 mm)
Max Load with Standard 1” Arbor
150 lbs. (68 kg)
Max Load with Optional 1-7/8” Truck Arbor
250 lbs. (113 kg)
Spindle Travel
9-7/8” (248 mm)
Spindle Speed
150 rpm – 200 rpm
Cross Feed Speed
(∞) 0 - .010” per revolution / 0 - 0.25 mm per revolution
Spindle Feed Speed
(∞) 0 - .020” per revolution / 0 - 0.55 mm per revolution
Overall Mounted Height
62” (1,575 mm)
Spindle to Floor (Mounted)
39-1/2” (1,003 mm)
Required Floor Space (W x D)
53” x 36” (1,347 mm x 914 mm)
Shipping Weight w/ Bench & Tools
730 lbs. (331 kg)
Shipping Dimensions
46'' x 45'' x 29'' (1,168 mm x 1,143 mm x 736 mm)
