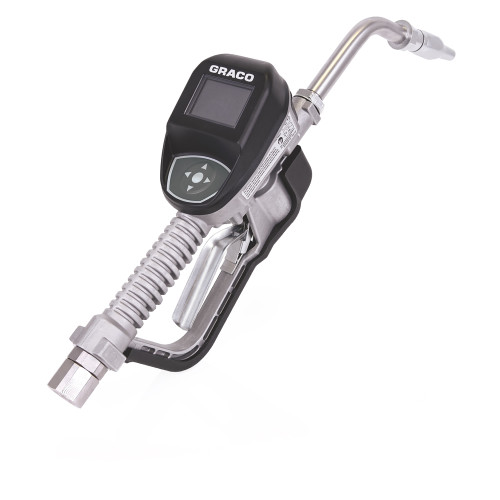

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Description
- Large, Intuitive Display—high-contrast display for low and bright light conditions
- Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
- Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
- Reliable—time-tested Graco engineering
- Durable - Thick cast aluminum body allows this meter to endure harsh, heavy-duty application
- Long battery life—uses 4 AA easy-to-replace batteries
Specifications
| Dispense Type | Manual |
|---|---|
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Flexible Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Maximum Flow Rate (L/min) | 30 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±0.5 |
| Overall Height (cm) | 14.6 |
| Overall Height (in) | 5.75 |
| Overall Height (mm) | 146 |
| Overall Length (cm) | 33 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Overall Width (mm) | 95 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Trigger Protection Type | Guard |
| Trigger Lock | Non-Locking |
| Minimum Operating Temperature (°F) | 4 |
| Minimum Operating Temperature (°C) | -16 |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 10.3 |
| Model | SDM8 |
